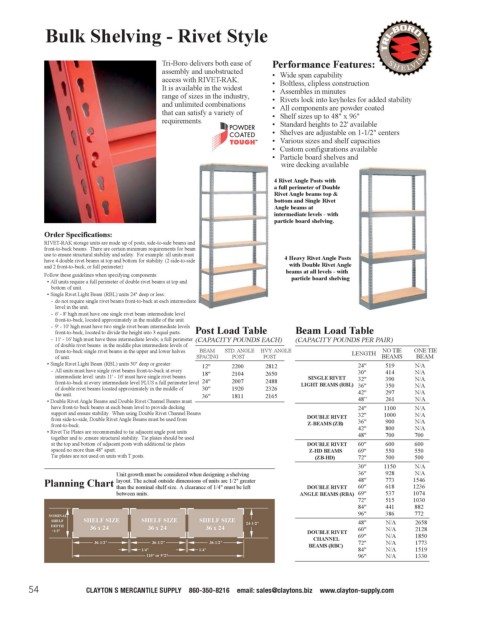

Page 56 - Clayton's Supply Catalog 2024

Bulk Shelving - Rivet Style

Tri-Boro delivers both ease of Performance Features:
assembly and unobstructed • Wide span capability
access with RIVET-RAK. • Boltless, clipless construction
It is available in the widest • Assembles in minutes
range of sizes in the industry, • Rivets lock into keyholes for added stability
and unlimited combinations • All components are powder coated
that can satisfy a variety of • Shelf sizes up to 48" x 96"
requirements. • Standard heights to 22' available
• Shelves are adjustable on 1-1/2" centers
• Various sizes and shelf capacities
• Custom configurations available
• Particle board shelves and
wire decking available
4 Rivet Angle Posts with
a full perimeter of Double
Rivet Angle beams top &
bottom and Single Rivet
Angle beams at
intermediate levels - with
particle board shelving.
Order Specifications:
RIVET-RAK storage units are made up of posts, side-to-side beams and
front-to-back beams. There are certain minimum requirements for beam
use to ensure structural stability and safety. For example: all units must 4 Heavy Rivet Angle Posts
have 4 double rivet beams at top and bottom for stability. (2 side-to-side
and 2 front-to-back, or full perimeter) with Double Rivet Angle
Follow these guidelines when specifying components: beams at all levels - with
particle board shelving
• All units require a full perimeter of double rivet beams at top and
bottom of unit.
• Single Rivet Light Beam (RBL) units 24" deep or less:
- do not require single rivet beams front-to-back at each intermediate
level in the unit.
- 6' - 8' high must have one single rivet beam intermediate level
front-to-back, located approximately in the middle of the unit.
- 9' - 10' high must have two single rivet beam intermediate levels Post Load Table Beam Load Table
front-to-back, located to divide the height into 3 equal parts.
- 11' - 16' high must have three intermediate levels; a full perimeter (CAPACITY POUNDS EACH) (CAPACITY POUNDS PER PAIR)
of double rivet beams in the middle plus intermediate levels of
front-to-back single rivet beams in the upper and lower halves BEAM STD. ANGLE HVY. ANGLE LENGTH NO TIE ONE TIE
of unit. SPACING POST POST BEAMS BEAM
• Single Rivet Light Beam (RBL) units 30" deep or greater: 12" 2200 2812 24" 519 N/A
- All units must have single rivet beams front-to-back at every 18" 2104 2650 30" 414 N/A
intermediate level: units 11' - 16' must have single rivet beams SINGLE RIVET 32" 390 N/A
front-to-back at every intermediate level PLUS a full perimeter level 24" 2007 2488 LIGHT BEAMS (RBL) 36" 350 N/A
of double rivet beams located approximately in the middle of 30" 1920 2326 42" 297 N/A
the unit. 36" 1811 2165
• Double Rivet Angle Beams and Double Rivet Channel Beams must 48” 261 N/A
have front-to back beams at each beam level to provide decking 24" 1100 N/A
support and ensure stability. When using Double Rivet Channel Beams 32" 1000 N/A
from side-to-side, Double Rivet Angle Beams must be used from DOUBLE RIVET 36" 900 N/A
front-to-back. Z-BEAMS (ZB) 42" 800 N/A
• Rivet Tie Plates are recommended to tie adjacent angle post units 48" 700 700
together and to ,ensure structural stability. Tie plates should be used
at the top and bottom of adjacent posts with additional tie plates DOUBLE RIVET 60" 600 600
spaced no more than 48" apart. Z-HD BEAMS 69" 550 550
Tie plates are not used on units with T posts. (ZB-HD) 72" 500 500
30" 1150 N/A
Unit growth must be considered when designing a shelving 36" 928 N/A
Planning Chart layout. The actual outside dimensions of units are 1/2" greater DOUBLE RIVET 48" 773 1546
60"
1236
618
than the nominal shelf size. A clearance of 1/4" must be left
between units. ANGLE BEAMS (RBA) 69" 537 1074
72" 515 1030
84" 441 882
96" 386 772
NOMINAL
SHELF SHELF SIZE SHELF SIZE SHELF SIZE 48" N/A 2658
DEPTH 36 x 24 36 x 24 36 x 24 24-1/2”
+1/2” DOUBLE RIVET 60" N/A 2128
CHANNEL 69" N/A 1850
36-1/2” 36-1/2” 36-1/2” BEAMS (RBC) 72" N/A 1773
1/4” 1/4” 84" N/A 1519
110” or 9’2” 96" N/A 1330
