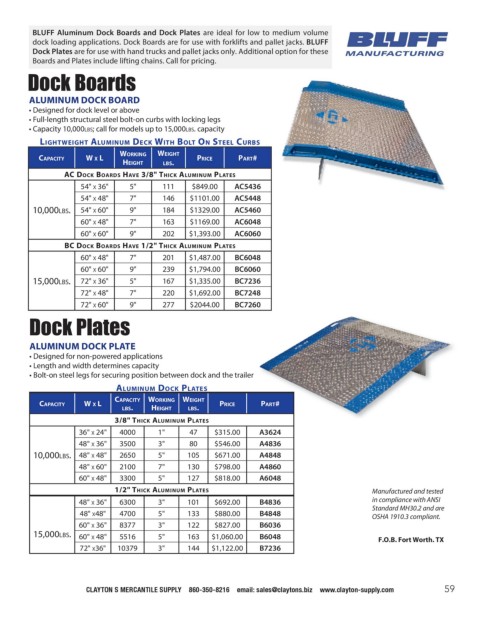

Page 61 - Clayton's Supply Catalog 2024

BLUFF Aluminum Dock Boards and Dock Plates are ideal for low to medium volume
dock loading applications. Dock Boards are for use with forklifts and pallet jacks. BLUFF
Dock Plates are for use with hand trucks and pallet jacks only. Additional option for these
Boards and Plates include lifting chains. Call for pricing.
Dock Boards

ALUMINUM DOCK BOARD
• Designed for dock level or above
• Full-length structural steel bolt-on curbs with locking legs
• Capacity 10,000lbs; call for models up to 15,000lbs. capacity
Lightweight aLUminUm deCk with boLt on steeL CUrbs
working weight
CaPaCity w x L PriCe Part#
height Lbs.
aC doCk boards have 3/8" thiCk aLUminUm PLates
54" x 36" 5" 111 $849.00 aC5436
54" x 48" 7" 146 $1101.00 aC5448
10,000lbs. 54" x 60" 9" 184 $1329.00 aC5460
60" x 48" 7" 163 $1169.00 aC6048
60" x 60" 9" 202 $1,393.00 aC6060
bC doCk boards have 1/2" thiCk aLUminUm PLates
60" x 48" 7" 201 $1,487.00 BC6048
60" x 60" 9" 239 $1,794.00 BC6060
15,000lbs. 72" x 36" 5" 167 $1,335.00 BC7236
72" x 48" 7" 220 $1,692.00 BC7248
72" x 60" 9" 277 $2044.00 BC7260
Dock Plates

ALUMINUM DOCK PLATE
• Designed for non-powered applications
• Length and width determines capacity
• Bolt-on steel legs for securing position between dock and the trailer

aLUminUm doCk PLates
CaPaCity w x L CaPaCity working weight PriCe Part#
Lbs. height Lbs.
3/8" thiCk aLUminUm PLates
36" x 24" 4000 1" 47 $315.00 a3624
48" x 36" 3500 3" 80 $546.00 a4836
10,000lbs. 48" x 48" 2650 5" 105 $671.00 a4848
48" x 60" 2100 7" 130 $798.00 a4860
60" x 48" 3300 5" 127 $818.00 a6048
1/2" thiCk aLUminUm PLates Manufactured and tested
48" x 36" 6300 3" 101 $692.00 B4836 in compliance with ANSI
48" x48" 4700 5" 133 $880.00 B4848 Standard MH30.2 and are
OSHA 1910.3 compliant.
60" x 36" 8377 3" 122 $827.00 B6036
15,000lbs. 60" x 48" 5516 5" 163 $1,060.00 B6048 F.O.B. Fort Worth. TX

72" x36" 10379 3" 144 $1,122.00 B7236

CLAYTON’S MERCANTILE SUPPLY • 860-350-8216 • email: sales@claytons.biz • www.clayton-supply.com 59
