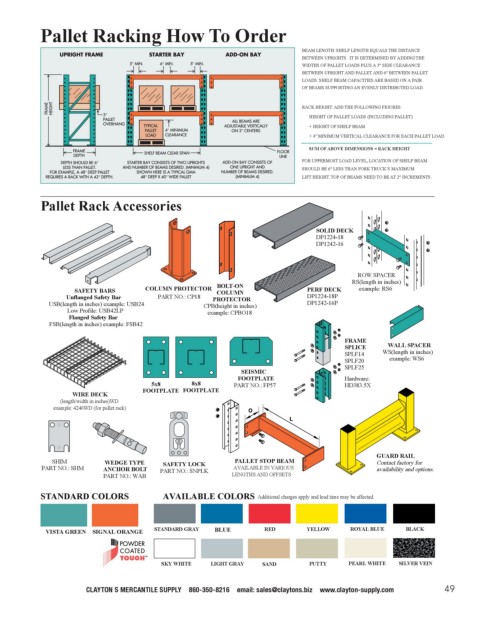

Pallet Racking How To Order
Pallet Rack BEAM LENGTH: SHELF LENGTH EQUALS THE DISTANCE
BETWEEN UPRIGHTS. IT IS DETERMINED BY ADDING THE
WIDTHS OF PALLET LOADS PLUS A 5" SIDE CLEARANCE
BETWEEN UPRIGHT AND PALLET AND 6" BETWEEN PALLET
LOADS. SHELF BEAM CAPACITIES ARE BASED ON A PAIR
OF BEAMS SUPPORTING AN EVENLY DISTRIBUTED LOAD.

RACK HEIGHT: ADD THE FOLLOWING FIGURES:
HEIGHT OF PALLET LOADS (INCLUDING PALLET)
+ HEIGHT OF SHELF BEAM
+ 4” MINIMUM VERTICAL CLEARANCE FOR EACH PALLET LOAD
SUM OF ABOVE DIMENSIONS = RACK HEIGHT
FOR UPPERMOST LOAD LEVEL, LOCATION OF SHELF BEAM
SHOULD BE 6" LESS THAN FORK TRUCK’S MAXIMUM
LIFT HEIGHT. TOP OF BEAMS NEED TO BE AT 2" INCREMENTS.

Pallet Rack Accessories

SOLID DECK
DP1224-18
DP1242-16

ROW SPACER
RS(length in inches)
BOLT-ON
SAFETY BARS COLUMN PROTECTOR COLUMN PERF DECK example: RS6
Unflanged Safety Bar PART NO.: CP18 PROTECTOR DP1224-18P
USB(length in inches) example: USB24 CPB(height in inches) DP1242-16P
Low Profile: USB42LP example: CPBO18
Flanged Safety Bar
FSB(length in inches) example: FSB42

FRAME
SPLICE WALL SPACER
SPLF14 WS(length in inches)
SPLF20 example: WS6
SPLF25
SEISMIC
FOOTPLATE Hardware:
5x8 8x8 PART NO.: FP57 HD383.5X
FOOTPLATE FOOTPLATE
WIRE DECK
(length/width in inches)WD
example: 4246WD (for pallet rack)

GUARD RAIL
SHIM WEDGE TYPE SAFETY LOCK PALLET STOP BEAM Contact factory for
PART NO.: SHM ANCHOR BOLT PART NO.: SNPLK AVAILABLE IN VARIOUS availability and options.
PART NO.: WAB LENGTHS AND OFFSETS
STANDARD COLORS AVAILABLE COLORS Additional charges apply and lead time may be affected.

VISTA GREEN SIGNAL ORANGE STANDARD GRAY BLUE RED YELLOW ROYAL BLUE BLACK

SKY WHITE LIGHT GRAY SAND PUTTY PEARL WHITE SILVER VEIN
