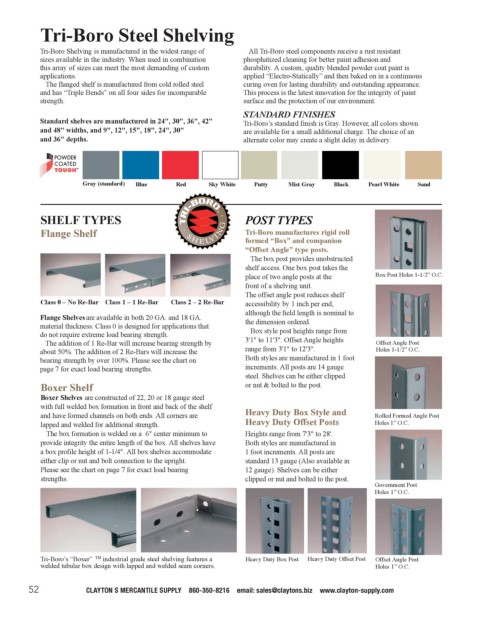

Page 54 - Clayton's Supply Catalog 2024

Tri-Boro Steel Shelving All Tri-Boro steel components receive a rust resistant
Steel Shelving sizes available in the industry. When used in combination phosphatized cleaning for better paint adhesion and
Tri-Boro Shelving is manufactured in the widest range of
this array of sizes can meet the most demanding of custom
durability. A custom, quality blended powder coat paint is
applied “Electro-Statically” and then baked on in a continuous
applications.
curing oven for lasting durability and outstanding appearance.
The flanged shelf is manufactured from cold rolled steel
and has “Triple Bends” on all four sides for incomparable
This process is the latest innovation for the integrity of paint
strength.
surface and the protection of our environment.
STANDARD FINISHES
Standard shelves are manufactured in 24", 30", 36", 42" Tri-Boro’s standard finish is Gray. However, all colors shown
and 48" widths, and 9", 12", 15", 18", 24", 30" are available for a small additional charge. The choice of an
and 36" depths. alternate color may create a slight delay in delivery.

Gray (standard) Blue Red Sky White Putty Mist Gray Black Pearl White Sand

SHELF TYPES POST TYPES
Flange Shelf Tri-Boro manufactures rigid roll
formed “Box” and companion
“Offset Angle” type posts.
The box post provides unobstructed
shelf access. One box post takes the
place of two angle posts at the Box Post Holes 1-1/2” O.C.
front of a shelving unit.
The offset angle post reduces shelf
Class 0 – No Re-Bar Class 1 – 1 Re-Bar Class 2 – 2 Re-Bar accessibility by 1 inch per end,
although the field length is nominal to

Flange Shelvesare available in both 20 GA. and 18 GA. the dimension ordered.
material thickness. Class 0 is designed for applications that
do not require extreme load bearing strength. Box style post heights range from
The addition of 1 Re-Bar will increase bearing strength by 3'1" to 11'3". Offset Angle heights Offset Angle Post
about 50%. The addition of 2 Re-Bars will increase the range from 3'1" to 12'3". Holes 1-1/2” O.C.
bearing strength by over 100%. Please see the chart on Both styles are manufactured in 1 foot
page 7 for exact load bearing strengths. increments. All posts are 14 gauge
steel. Shelves can be either clipped
Boxer Shelf or nut & bolted to the post.
Boxer Shelves are constructed of 22, 20 or 18 gauge steel
with full welded box formation in front and back of the shelf
and have formed channels on both ends. All corners are Heavy Duty Box Style and Rolled Formed Angle Post
lapped and welded for additional strength. Heavy Duty Offset Posts Holes 1” O.C.
The box formation is welded on a 6" center minimum to Heights range from 7'3" to 28'.
provide integrity the entire length of the box. All shelves have Both styles are manufactured in
a box profile height of 1-1/4". All box shelves accommodate 1 foot increments. All posts are
either clip or nut and bolt connection to the upright. standard 13 gauge (Also available in
Please see the chart on page 7 for exact load bearing 12 gauge). Shelves can be either
strengths. clipped or nut and bolted to the post.
Government Post
Holes 1” O.C.

Tri-Boro’s “Boxer” TM industrial grade steel shelving features a Heavy Duty Box Post Heavy Duty Offset Post Offset Angle Post
welded tubular box design with lapped and welded seam corners. Holes 1” O.C.
