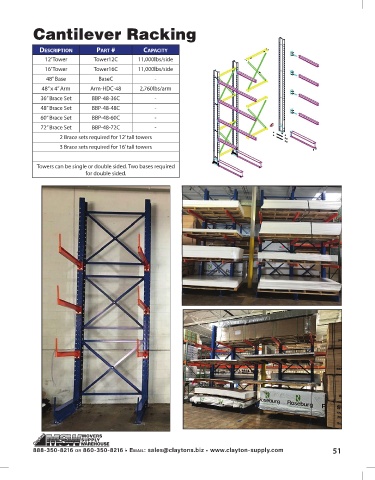

Cantilever Racking
dESCRIPTIOn PaRT # CaPaCITy
12’ Tower Tower12C 11,000lbs/side
16’ Tower Tower16C 11,000lbs/side
48” Base BaseC -
48” x 4” Arm Arm-HDC-48 2,760lbs/arm
36” Brace Set BBP-48-36C -
48” Brace Set BBP-48-48C -
60” Brace Set BBP-48-60C -
72” Brace Set BBP-48-72C -
2 Brace sets required for 12’ tall towers
3 Brace sets required for 16’ tall towers
Towers can be single or double sided. Two bases required
for double sided.
