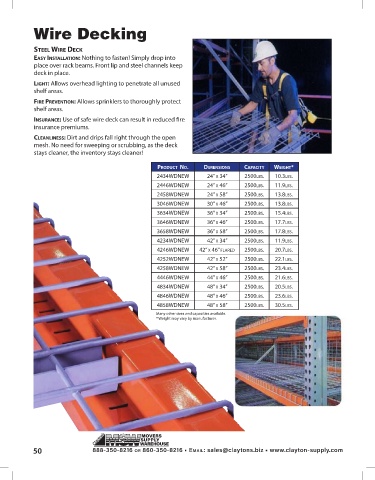

Wire Decking
STEEL WIRE dECk
EaSy InSTaLLaTIOn: Nothing to fasten! Simply drop into
place over rack beams. Front lip and steel channels keep
deck in place.
LIghT: Allows overhead lighting to penetrate all unused
shelf areas.
fIRE PREVEnTIOn: Allows sprinklers to thoroughly protect
shelf areas.
InSURanCE: Use of safe wire deck can result in reduced fire
insurance premiums.
CLEanLInESS: Dirt and drips fall right through the open
mesh. No need for sweeping or scrubbing, as the deck
stays cleaner, the inventory stays cleaner!
PROdUCT nO. dImEnSIOnS CaPaCITy WEIghT*
2434wdnew 24” x 34” 2500lbs. 10.3lbs.
2446wdnew 24” x 46” 2500lbs. 11.9lbs.
2458wdnew 24” x 58” 2500lbs. 13.8lbs.
3046wdnew 30” x 46” 2500lbs. 13.8lbs.
3634wdnew 36” x 34” 2500lbs. 15.4lbs.
3646wdnew 36” x 46” 2500lbs. 17.7lbs.
3658wdnew 36” x 58” 2500lbs. 17.8lbs.
4234wdnew 42” x 34” 2500lbs. 11.9lbs.
4246wdnew 42” x 46” flared 2500lbs. 20.7lbs.
4252wdnew 42” x 52” 2500lbs. 22.1lbs.
4258wdnew 42” x 58” 2500lbs. 23.4lbs.
4446wdnew 44” x 46” 2500lbs. 21.6lbs.
4834wdnew 48” x 34” 2500lbs. 20.5lbs.
4846wdnew 48” x 46” 2500lbs. 23.6lbs.
4858wdnew 48” x 58” 2500lbs. 30.5lbs.
Many other sizes and capacities available.
* Weight may vary by manufacturer.
