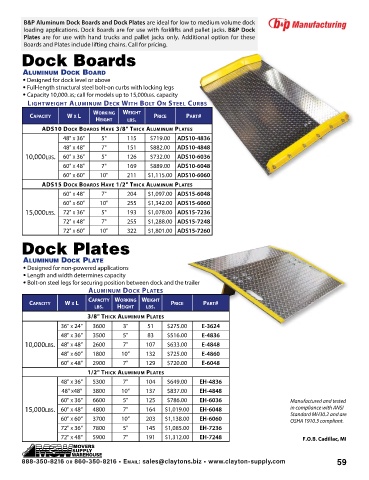

Page 61 - MSWcvr2020V6aR

B&P Aluminum Dock Boards and Dock Plates are ideal for low to medium volume dock
loading applications. Dock Boards are for use with forklifts and pallet jacks. B&P Dock
Plates are for use with hand trucks and pallet jacks only. Additional option for these
Boards and Plates include lifting chains. Call for pricing.
Dock Boards

aluminum DoCk BoarD
• Designed for dock level or above
• Full-length structural steel bolt-on curbs with locking legs
• Capacity 10,000lbs; call for models up to 15,000lbs. capacity
lighTwEighT AlUminUm DECk wiTh BOlT On sTEEl CUrBs

CAPACiTy w x l wOrking wEighT PriCE PArT#
hEighT lBs.
ADs10 DOCk BOArDs hAvE 3/8" ThiCk AlUminUm PlATEs
48" x 36" 5" 115 $719.00 ADS10-4836
48" x 48" 7" 151 $882.00 ADS10-4848
10,000lbs. 60" x 36" 5" 126 $732.00 ADS10-6036
60" x 48" 7" 169 $889.00 ADS10-6048
60" x 60" 10" 211 $1,115.00 ADS10-6060
ADs15 DOCk BOArDs hAvE 1/2" ThiCk AlUminUm PlATEs
60" x 48" 7" 204 $1,097.00 ADS15-6048
60" x 60" 10" 255 $1,342.00 ADS15-6060
15,000lbs. 72" x 36" 5" 193 $1,078.00 ADS15-7236
72" x 48" 7" 255 $1,288.00 ADS15-7248
72" x 60" 10" 322 $1,801.00 ADS15-7260
Dock Plates

aluminum DoCk plate
• Designed for non-powered applications
• Length and width determines capacity
• Bolt-on steel legs for securing position between dock and the trailer
AlUminUm DOCk PlATEs
CAPACiTy wOrking wEighT
CAPACiTy w x l lBs. hEighT lBs. PriCE PArT#

3/8" ThiCk AlUminUm PlATEs
36" x 24" 3600 3" 51 $275.00 e-3624
48" x 36" 3500 5" 83 $516.00 e-4836
10,000lbs. 48" x 48" 2600 7" 107 $633.00 e-4848
48" x 60" 1800 10" 132 $725.00 e-4860
60" x 48" 2900 7" 129 $720.00 e-6048
1/2" ThiCk AlUminUm PlATEs
48" x 36" 5300 7" 104 $649.00 eH-4836
48" x48" 3800 10" 137 $837.00 eH-4848
60" x 36" 6600 5" 125 $786.00 eH-6036 Manufactured and tested
15,000lbs. 60" x 48" 4800 7" 164 $1,019.00 eH-6048 in compliance with ANSI
Standard MH30.2 and are
60" x 60" 3700 10" 203 $1,138.00 eH-6060 OSHA 1910.3 compliant.
72" x 36" 7800 5" 145 $1,085.00 eH-7236
72" x 48" 5900 7" 191 $1,312.00 eH-7248 F.O.B. Cadillac, MI

59
