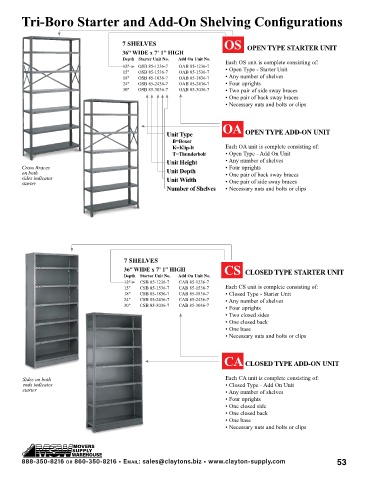

Tri-Boro Starter and Add-On Shelving Configurations

Steel Shelving 7 SHELVES Add On Unit No. OS OPEN TYPE STARTER UNIT

36" WIDE x 7’ 1” HIGH
Depth Starter Unit No.
Each OS unit is complete consisting of:
12"
OAB 85-1536-7
OSB 85-1536-7
15"
• Any number of shelves
OAB 85-1836-7
18" OSB 85-1236-7 OAB 85-1236-7 • Open Type - Starter Unit
OSB 85-1836-7
24" OSB 85-2436-7 OAB 85-2436-7 • Four uprights
30" OSB 85-3036-7 OAB 85-3036-7 • Two pair of side sway braces
• One pair of back sway braces
• Necessary nuts and bolts or clips
Unit Type OA OPEN TYPE ADD-ON UNIT
B=Boxer
K=Klip-It Each OA unit is complete consisting of:
T=Thunderbolt • Open Type - Add On Unit
Unit Height • Any number of shelves
Cross Braces • Four uprights
on both Unit Depth • One pair of back sway braces
sides indicates Unit Width
starter • One pair of side sway braces
Number of Shelves • Necessary nuts and bolts or clips

7 SHELVES
36" WIDE x 7’ 1” HIGH CS CLOSED TYPE STARTER UNIT
Depth Starter Unit No. Add On Unit No.
12" CSB 85-1236-7 CAB 85-1236-7
15" CSB 85-1536-7 CAB 85-1536-7 Each CS unit is complete consisting of:
18" CSB 85-1836-7 CAB 85-1836-7 • Closed Type - Starter Unit
24" CSB 85-2436-7 CAB 85-2436-7 • Any number of shelves
30" CSB 85-3036-7 CAB 85-3036-7 • Four uprights
• Two closed sides
• One closed back
• One base
• Necessary nuts and bolts or clips

CA CLOSED TYPE ADD-ON UNIT

Sides on both Each CA unit is complete consisting of:
ends indicates • Closed Type - Add On Unit
starter • Any number of shelves
• Four uprights
• One closed side
• One closed back
• One base
• Necessary nuts and bolts or clips
