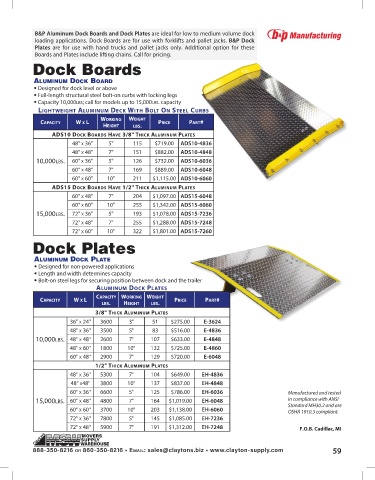

Page 61 - Clayton's Supply Catalog 12.01.2020

B&P Aluminum Dock Boards and Dock Plates are ideal for low to medium volume dock
loading applications. Dock Boards are for use with forklifts and pallet jacks. B&P Dock
Plates are for use with hand trucks and pallet jacks only. Additional option for these
Boards and Plates include lifting chains. Call for pricing.
Dock Boards

aluminum DoCk BoarD
• Designed for dock level or above
• Full-length structural steel bolt-on curbs with locking legs
• Capacity 10,000lbs; call for models up to 15,000lbs. capacity
LIghTWEIghT aLUmInUm dECk WITh bOLT On STEEL CURbS

CaPaCITy W x L WORkIng WEIghT PRICE PaRT#
hEIghT LbS.
adS10 dOCk bOaRdS haVE 3/8" ThICk aLUmInUm PLaTES
48" x 36" 5" 115 $719.00 ads10-4836
48" x 48" 7" 151 $882.00 ads10-4848
10,000lbs. 60" x 36" 5" 126 $732.00 ads10-6036
60" x 48" 7" 169 $889.00 ads10-6048
60" x 60" 10" 211 $1,115.00 ads10-6060
adS15 dOCk bOaRdS haVE 1/2" ThICk aLUmInUm PLaTES
60" x 48" 7" 204 $1,097.00 ads15-6048
60" x 60" 10" 255 $1,342.00 ads15-6060
15,000lbs. 72" x 36" 5" 193 $1,078.00 ads15-7236
72" x 48" 7" 255 $1,288.00 ads15-7248
72" x 60" 10" 322 $1,801.00 ads15-7260
Dock Plates

aluminum DoCk plate
• Designed for non-powered applications
• Length and width determines capacity
• Bolt-on steel legs for securing position between dock and the trailer
aLUmInUm dOCk PLaTES
CaPaCITy WORkIng WEIghT
CaPaCITy W x L LbS. hEIghT LbS. PRICE PaRT#

3/8" ThICk aLUmInUm PLaTES
36" x 24" 3600 3" 51 $275.00 e-3624
48" x 36" 3500 5" 83 $516.00 e-4836
10,000lbs. 48" x 48" 2600 7" 107 $633.00 e-4848
48" x 60" 1800 10" 132 $725.00 e-4860
60" x 48" 2900 7" 129 $720.00 e-6048
1/2" ThICk aLUmInUm PLaTES
48" x 36" 5300 7" 104 $649.00 eh-4836
48" x48" 3800 10" 137 $837.00 eh-4848
60" x 36" 6600 5" 125 $786.00 eh-6036 Manufactured and tested
15,000lbs. 60" x 48" 4800 7" 164 $1,019.00 eh-6048 in compliance with ANSI
Standard MH30.2 and are
60" x 60" 3700 10" 203 $1,138.00 eh-6060 OSHA 1910.3 compliant.
72" x 36" 7800 5" 145 $1,085.00 eh-7236
72" x 48" 5900 7" 191 $1,312.00 eh-7248 F.O.B. Cadillac, MI
