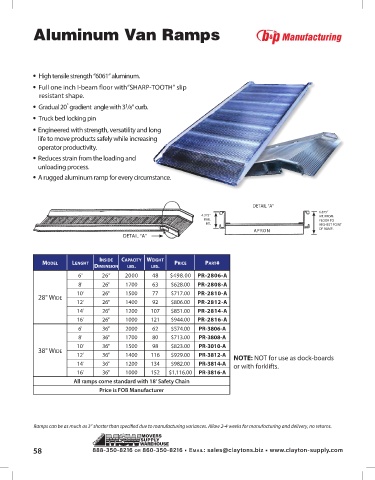

Aluminum Van Ramps

• High tensile strength “6061” aluminum.

• Full one inch I-beam floor with“SHARP-TOOTH” slip
resistant shape.
1
• Gradual 20˚ gradient angle with 3 /8” curb.
• Truck bed locking pin

• Engineered with strength, versatility and long
life to move products safely while increasing
operator productivity.
• Reduces strain from the loading and
unloading process.
• A rugged aluminum ramp for every circumstance.

DETAIL “A”
6.875”
4.375” HT. FROM
RAIL FLOOR TO
HT. HIGHEST POINT
APRON OF RAMP.
DETAIL “A”

InSIdE CaPaCITy WEIghT
mOdEL LEnghT PRICE PaRT#
dImEnSIOn LbS. LbS.
6' 26" 2000 48 $498.00 PR-2806-a
8' 26" 1700 63 $628.00 PR-2808-a
10' 26" 1500 77 $717.00 PR-2810-a
28" wide
12' 26" 1400 92 $806.00 PR-2812-a
14' 26" 1200 107 $851.00 PR-2814-a
16' 26" 1000 121 $944.00 PR-2816-a
6' 36" 2000 62 $574.00 PR-3806-a
8' 36" 1700 80 $713.00 PR-3808-a
10' 36" 1500 98 $823.00 PR-3010-a
38" wide
12' 36" 1400 116 $929.00 PR-3812-a NOTE: NOT for use as dock-boards
14' 36" 1200 134 $982.00 PR-3814-a or with forklifts.
16' 36" 1000 152 $1,116.00 PR-3816-a
All ramps come standard with 18' Safety Chain
Price is FOB Manufacturer

Ramps can be as much as 3” shorter than specified due to manufacturing variances. Allow 2-4 weeks for manufacturing and delivery, no returns.
