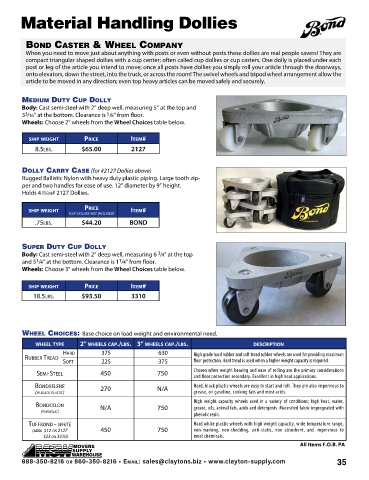

Material Handling Dollies

BonD Caster & Wheel Company
When you need to move just about anything with posts or even without posts these dollies are real people savers! They are
compact triangular shaped dollies with a cup center; often called cup dollies or cup casters. One dolly is placed under each
post or leg of the article you intend to move; once all posts have dollies you simply roll your article through the doorways,
onto elevators, down the street, into the truck, or across the room! The swivel wheels and tripod wheel arrangement allow the
article to be moved in any direction; even top heavy articles can be moved safely and securely.

meDium Duty Cup Dolly
Body: Cast semi-steel with 2” deep well, measuring 5” at the top and
3
5
3 /16” at the bottom. Clearance is /8” from floor.
Wheels: Choose 2" wheels from the Wheel Choices table below.
shiP wEighT PriCE iTEm#
8.5lbs. $65.00 2127

Dolly Carry Case (for #2127 Dollies above)
Rugged Ballistic Nylon with heavy duty plastic piping. Large tooth zip-
per and two handles for ease of use. 12” diameter by 9” height.
Holds 4 item# 2127 Dollies.

shiP wEighT PriCE iTEm#
(cup Dollies not incluDeD)
.75lbs. $44.20 BOnD

super Duty Cup Dolly
3
Body: Cast semi-steel with 2” deep well, measuring 6 /4” at the top
1
1
and 5 /4” at the bottom. Clearance is 1 /4” from floor.
Wheels: Choose 3" wheels from the Wheel Choices table below.
shiP wEighT PriCE iTEm#
18.5lbs. $93.50 3310

Wheel ChoiCes: Base choice on load weight and environmental need.

whEEl TyPE 2" whEEls CAP./lBs. 3" whEEls CAP./lBs. DEsCriPTiOn
hard 375 630 High grade hard rubber and soft tread rubber wheels are used for providing maximum
rubber tread
soft 225 375 floor protection . Hard tread is used when a higher weight capacity is required .

semi-steel 450 750 Chosen when weight bearing and ease of rolling are the primary considerations
and floor protection secondary . Excellent in high heat applications .
bondrelene 270 n/a Hard, black plastic wheels are easy to start and roll . They are also impervious to
(in black plastic) grease, oil gasoline, cooking fats and most acids .
High weight capacity wheels used in a variety of conditions; high heat, water,
bondcelon n/a 750 grease, oils, animal fats, acids and detergents . Macerated fabric impregnated with
(phenolic)
phenolic resin .
tuffbond - white Hard white plastic wheels with high weight capacity, wide temperature range,
(ADD: $12 on 2127 450 750 non-marking, non-shedding, anti-static, non absorbent, and impervious to
$23 on 3310) most chemicals .
All Items F.O.B. PA
