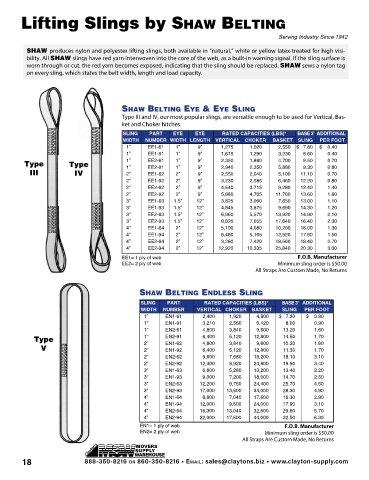

Lifting Slings by shaW Belting

Serving Industry Since 1942

SHAW produces nylon and polyester lifting slings, both available in “natural,” white or yellow latex-treated for high visi-
bility. All SHAW slings have red yarn interwoven into the core of the web, as a built-in warning signal. If the sling surface is
worn through or cut, the red yarn becomes exposed, indicating that the sling should be replaced. SHAW sews a nylon tag
on every sling, which states the belt width, length and load capacity.

shaW Belting eye & eye sling
Type III and IV, our most popular slings, are versatile enough to be used for Vertical, Bas-
ket and Choker hitches.

SLING PART EYE EYE RATED CAPACITIES (LBS)* BASE 3’ ADDITIONAL
WIDTH NUMBER WIDTH LENGTH VERTICAL CHOKER BASKET SLING PER FOOT
1” EE1-61 1” 9” 1,275 1,020 2,550 $ 7.80 $ 0.40
1” EE1-91 1” 9” 1,615 1,290 3,230 8.60 0.40
Type Type 1” EE2-61 1” 9” 2,350 1,880 4,700 8.50 0.70
2,350
1”
9”
2,940
9.30
1”
EE2-91
5,880
0.80
III IV 2” EE1-62 2” 9” 2,550 2,040 5,100 11.10 0.70
2” EE1-92 2” 9” 3,230 2,585 6,460 12.20 0.80
2” EE2-62 2” 9” 4,640 3,715 9,280 12.40 1.40
2” EE2-92 2” 9” 5,880 4,705 11,760 13.60 1.60
3” EE1-63 1.5” 12” 3,825 3,060 7,650 13.00 1.10
3” EE1-93 1.5” 12” 4,845 3,875 9,690 14.30 1.20
3” EE2-63 1.5” 12” 6,960 5,570 13,920 14.90 2.10
3” EE2-93 1.5” 12” 8,820 7,055 17,640 16.40 2.30
4” EE1-64 2” 12” 5,100 4,080 10,200 16.00 1.30
4” EE1-94 2” 12” 6,460 5,165 12,920 17.60 1.50
4” EE2-64 2” 12” 9,280 7,420 18,560 18.40 2.70
4” EE2-94 2” 12” 12,920 10,335 25,840 20.30 3.00
EE1= 1 ply of web F.O.B. Manufacturer
EE2= 2 ply of web Minimum sling order is $50.00
All Straps Are Custom Made, No Returns
shaW Belting enDless sling
SLING PART RATED CAPACITIES (LBS)* BASE 3’ ADDITIONAL
WIDTH NUMBER VERTICAL CHOKER BASKET SLING PER FOOT
1” EN1-61 2,400 1,920 4,800 $ 7.30 $ 0.80
1” EN1-91 3,210 2,560 6,420 8.00 0.90
1” EN2-61 4,800 3,840 9,600 13.20 1.60
Type 1” EN2-91 6,400 5,120 12,800 14.50 1.70
9,600
V 2” EN1-62 4,800 3,840 12,800 10.30 1.60
2”
EN1-92
6,400
11.30
1.70
5,120
2” EN2-62 9,600 7,680 19,200 18.10 3.10
2” EN2-92 12,400 9,920 24,800 19.90 3.40
3” EN1-63 6,600 5,280 13,200 13.40 2.20
3” EN1-93 9,000 7,200 18,000 14.70 2.50
3” EN2-63 12,200 9,760 24,400 25.70 4.50
3” EN2-93 17,000 13,600 34,000 28.30 4.90
4” EN1-64 8,800 7,040 17,600 16.30 2.90
4” EN1-94 12,000 9,600 24,000 17.90 3.10
4” EN2-64 16,300 13,040 32,600 29.60 5.70
4” EN2-94 22,000 17,600 44,000 32.50 6.30
EN1= 1 ply of web F.O.B. Manufacturer
EN2= 2 ply of web Minimum sling order is $50.00
All Straps Are Custom Made, No Returns
