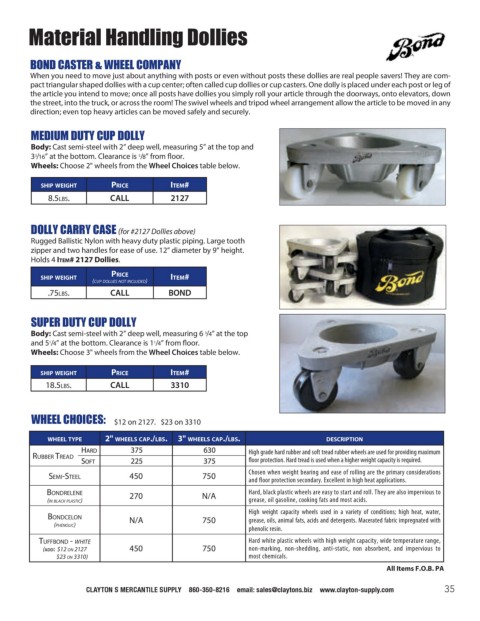

Page 37 - Clayton's Supply Catalog 2024

Material Handling Dollies

BOND CASTER & WHEEL COMPANY

When you need to move just about anything with posts or even without posts these dollies are real people savers! They are com-
pact triangular shaped dollies with a cup center; often called cup dollies or cup casters. One dolly is placed under each post or leg of
the article you intend to move; once all posts have dollies you simply roll your article through the doorways, onto elevators, down
the street, into the truck, or across the room! The swivel wheels and tripod wheel arrangement allow the article to be moved in any
direction; even top heavy articles can be moved safely and securely.

MEDIUM DUTY CUP DOLLY

Body: Cast semi-steel with 2” deep well, measuring 5” at the top and
3 /16” at the bottom. Clearance is /8” from floor.
5
3
Wheels: Choose 2" wheels from the Wheel Choices table below.
shiP weight PriCe item#
8.5lbs. Call 2127

DOLLY CARRY CASE (for #2127 Dollies above)
Rugged Ballistic Nylon with heavy duty plastic piping. Large tooth
zipper and two handles for ease of use. 12” diameter by 9” height.
Holds 4 item# 2127 Dollies.
PriCe
shiP weight (cup Dollies not incluDeD) item#
.75lbs. Call Bond

SUPER DUTY CUP DOLLY

Body: Cast semi-steel with 2” deep well, measuring 6 /4” at the top
3
and 5 /4” at the bottom. Clearance is 1 /4” from floor.
1
1
Wheels: Choose 3" wheels from the Wheel Choices table below.
shiP weight PriCe item#
18.5lbs. Call 3310

WHEEL CHOICES: $12 on 2127. $23 on 3310

wheeL tyPe 2" wheeLs CaP./Lbs. 3" wheeLs CaP./Lbs. desCriPtion
High grade hard rubber and soft tread rubber wheels are used for providing maximum
rubber tread
floor protection . Hard tread is used when a higher weight capacity is required .
semi-steel 450 750 Chosen when weight bearing and ease of rolling are the primary considerations
and floor protection secondary . Excellent in high heat applications .
bondrelene 270 n/a Hard, black plastic wheels are easy to start and roll . They are also impervious to
(in black plastic) grease, oil gasoline, cooking fats and most acids .
High weight capacity wheels used in a variety of conditions; high heat, water,
bondcelon n/a 750 grease, oils, animal fats, acids and detergents . Macerated fabric impregnated with
(phenolic)
phenolic resin .
tuffbond - white Hard white plastic wheels with high weight capacity, wide temperature range,
(add: $12 on 2127 450 750 non-marking, non-shedding, anti-static, non absorbent, and impervious to
$23 on 3310) most chemicals .
All Items F.O.B. PA

CLAYTON’S MERCANTILE SUPPLY • 860-350-8216 • email: sales@claytons.biz • www.clayton-supply.com 35
